Today I finished modifying the tunnel to receive the Golf MK5 selector mechanism .
Started by cutting a bigger hole for the selector mechanism and drilling holes to get it fixed:




the small holes were made to remove the MK2 selector mechanism mounts




did some modifications on the tunnel to fit the MK5 selector mechanism




and here is how it came out:

__________________
TUNINGGARAGE
REVO TECHNIK

Some progress was done these past days.
I totally redone the sub frame for the Golf MK5 dash. I newer posted pictures of the sub frame and the work done for it to be fitted because I didn't like how it was done :thumbdown:
So I started everything over again and here is how everything was done:

first of all I bought a new subframe




and the original Golf 5 holders that the sub frame is tighten to and cut them to fit







then more cutting




and then started making some pieces to weld on the chassis that would except the holders for the sub frame










after I welded the holders I cut the rest of the sub frame to fit between the pieces










took the sub frame to be welded and here are the results:







and...










after the sub frame was fitted next was the intake for the air conditioning




first I took a part of the air conditioning to be a little modified







and then everything could be welded




After all of these I had to redo the shifter because it had to move 2 sm back ( it was too close to the dash)

__________________
TUNINGGARAGE
REVO TECHNIK

wow, nice work!

__________________
Project Topic: VW Golf MKII 1.8T daily tracktoy

Insta: https://www.instagram.com/turboclouseau/

YT: https://www.youtube.com/user/renerene1984/videos

neat! the subframe looks as if it was originally there!

__________________
Insta:

@knarfmk1
@085mk1gearboxmount

Project lightweight

Te koop: Custom versnellingsbaksteun om een (085-) 5-bak in je 1100/1300 golf 1 te bouwen

I'm almost finished with the roll cage and now planing on making a support to the suspension housing from the roll cage

Here are some pictures from the roll cage:







And here is the support to the suspension housing from the roll cage that I planed on doing
What do you think?

__________________
TUNINGGARAGE
REVO TECHNIK

This is very nice to see, keep on going the good work

__________________
Tweede swallowtail van 74 in de resto
Mijn 74er slapend project
Oud 75er swallowtail project


Cnc Frezen, custom made onderdelen ik maak het terecht voor je.
Pm me voor meer info

Here are some pictures of what I have finished yesterday :

__________________
TUNINGGARAGE
REVO TECHNIK

My compliments it looks great again! Also the support for the rollcage to the suspension housing looks good, this will compensate for the bends in the cage.

__________________
Groetjes,
Bert

VW Jetta 1.6 1984 (NL)
Audi Q7 3.0 TFSI 2019 (UAE)
Audi TT 2006 (UAE)
Volvo XC60 2010 lifted and modified (UAE)


"Because there's a thin line between hobby and mental illness!"

shouldn't the support go all the way to the housing though? welding it to the raintray won't do much imho.. the raintray is such flimsy material.

__________________
Welcome to the internet:
Where men are men, women are men, and little girls are FBI agents.

It will be going all the way to the housing but from the pictures you cant see
There is a place where the raintray and the housing come together and there I plan to weld the support

__________________
TUNINGGARAGE
REVO TECHNIK

Some updates

I finished the rear reinforcement










also finished the front reinforcement from the suspension housing to the roll cage













in the mean time I mange to find time to build this :













so I can move the shell in mu garage :laugh:
and some shopping was done:
Rear 4 piston calipers from Shevrolet Camaro SS 2010+ for the rear axle




brake disc for the rear :




also bought H&R FRONT SWAY BAR VW GOLF 3 VR6 25MM
and the emblems:

__________________
TUNINGGARAGE
REVO TECHNIK

Very nice!

__________________
Restauratie van mijn 1974 Swallowtail

When do you think your car is ready to ride?

What diameter are those brakes, they look massive on the pictures!

__________________

A hope that next year I'll be riding it. I'm geting ready to take the car to painting and after that...will see???

__________________
TUNINGGARAGE
REVO TECHNIK

I think the calipers ride on 355mm disc
and the disc that I plan to use are 310mm

__________________
TUNINGGARAGE
REVO TECHNIK

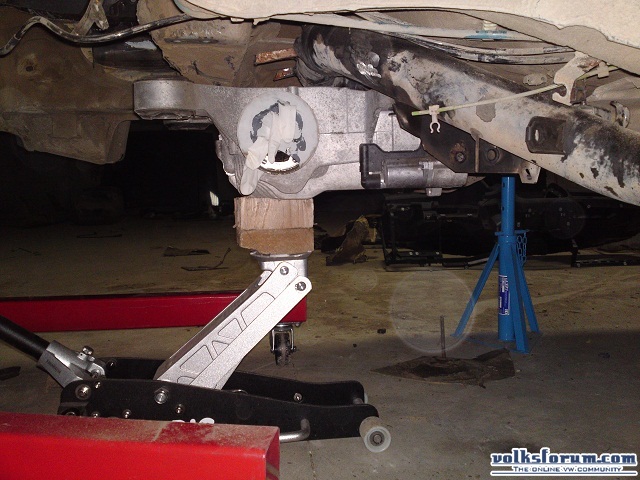

why did you cut out the floor panel ??? was it in the way of the haldex or you needed more space for the custom subframe part ???

very nice . looking fwd for updates

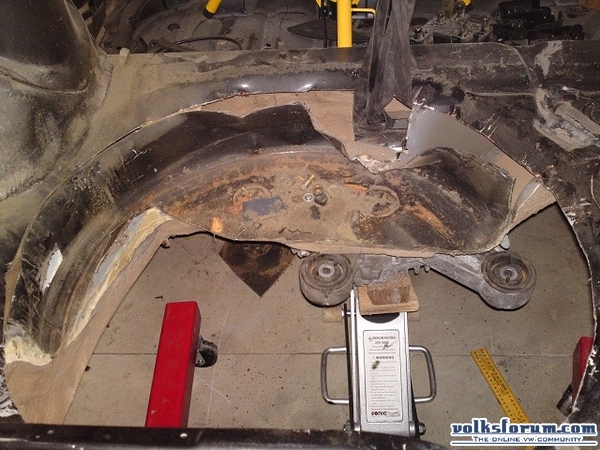

No it doesn't come in the way of the Haldex or the custom subframe part I just needed more space to work and in that space I plan on putting a special battery holder box that comes from a Golf R32 MK5.

__________________
TUNINGGARAGE
REVO TECHNIK

Finally finished the roll cage













also sorted out the pedals










and the most important thing for me, the gearbox mount
















still some minor things to be done and then... off to the paint shop :P

__________________
TUNINGGARAGE
REVO TECHNIK

Looks good, like the way you did with the engine / gearbox supports. Have you thought about the lower gearbox stabilizer?

I'm very curious about the result after painting.

__________________
Groetjes,
Bert

VW Jetta 1.6 1984 (NL)
Audi Q7 3.0 TFSI 2019 (UAE)
Audi TT 2006 (UAE)
Volvo XC60 2010 lifted and modified (UAE)


"Because there's a thin line between hobby and mental illness!"
